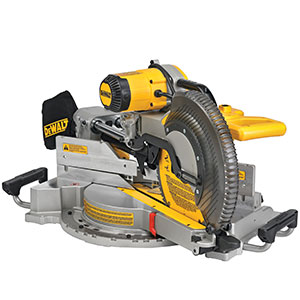

Dewalt 220V 12 Inch Compound Miter Saw DWS780-GB

AED 0.00

Availability Out of stock
    • 15 amp motor and 3800 rpm motor provides high power and durability
    • Integrated crosscut positioning for more accurate work
    • Over 75% of Dust collected by the dust collection system
    • Adjustable stainless-steel miter detent plate and it has 10 positive stops which enhance cutting accuracy and productivity
    • Oversized bevel scale for angle adjustment Miters 60° right and  50° left provide increased capacity
    • Gearbox and belt-drive design for vertical cutting capacity
    • Cam lock miter handle and lightweight design (58 lbs)Dual horizontal steel rails and linear ball bearing
Color
Black
Yellow
Spec
Brand Dewalt
Material

  • 15 amp motor and 3800 rpm motor provides high power and durability
  • Integrated crosscut positioning for more accurate work
  • Over 75% of Dust collected by the dust collection system
  • Adjustable stainless-steel miter detent plate and it has 10 positive stops which enhance cutting accuracy and productivity
  • Oversized bevel scale for angle adjustment Miters 60° right and  50° left provide increased capacity
  • Gearbox and belt-drive design for vertical cutting capacity
  • Cam lock miter handle and lightweight design (58 lbs)Dual horizontal steel rails and linear ball bearing

  • Brand : Dewalt
  • Item Name : Compound miter saw
  • Model Number : DWS780-GB
  • Colour: YellowPower Input: 1675 Watts
  • Power Output: 960 Watt
  • Blade Speed: 1900 – 3800 rpm
  • Blade Diameter: 305 mm
  • Blade Bore: 30 mm
  • Bevel Capacity: 49/49°
  • Mitre Capacity [right/left]: 60/50°
  • Cutting Capacity at 90ø/45ø (W x H): 211 x 112 mm
  • Cutting Capacity at 90ø/90ø (W x H): 303 x110 mm
  • Cutting Capacity at 90ø/90ø (W x H): 345 x 76 mm
  • Cutting Capacity at 45ø/90ø (W x H): 268 x 63 mm
  • Cutting Capacity at 45ø/90ø (W x H): 345 x 44 mm
  • Cutting Capacity at 90ø/45ø (W x H): 244 x 76 mm
  • Max. Cutting Capacity at 45ø/45ø: 212 x 76 mm
  • Max. Depth of Cut [Saws]: 170 mm
  • Weight: 24.8 kg
  • Depth: 470 mm
  • Length: 770 mm
  • Height: 396 mm
  • Hand/Arm Vibration – Cutting Wood: <2.5 m/s²
  • Uncertainty K 1 (Vibration): 1.5 m/s²
  • Sound Power: 100 dB(A)
  • Sound Power Uncertainty: 3 dB(A)
  • Sound Pressure: 93 dB(A)
  • Sound Pressure Uncertainty: 3 dB(A)
